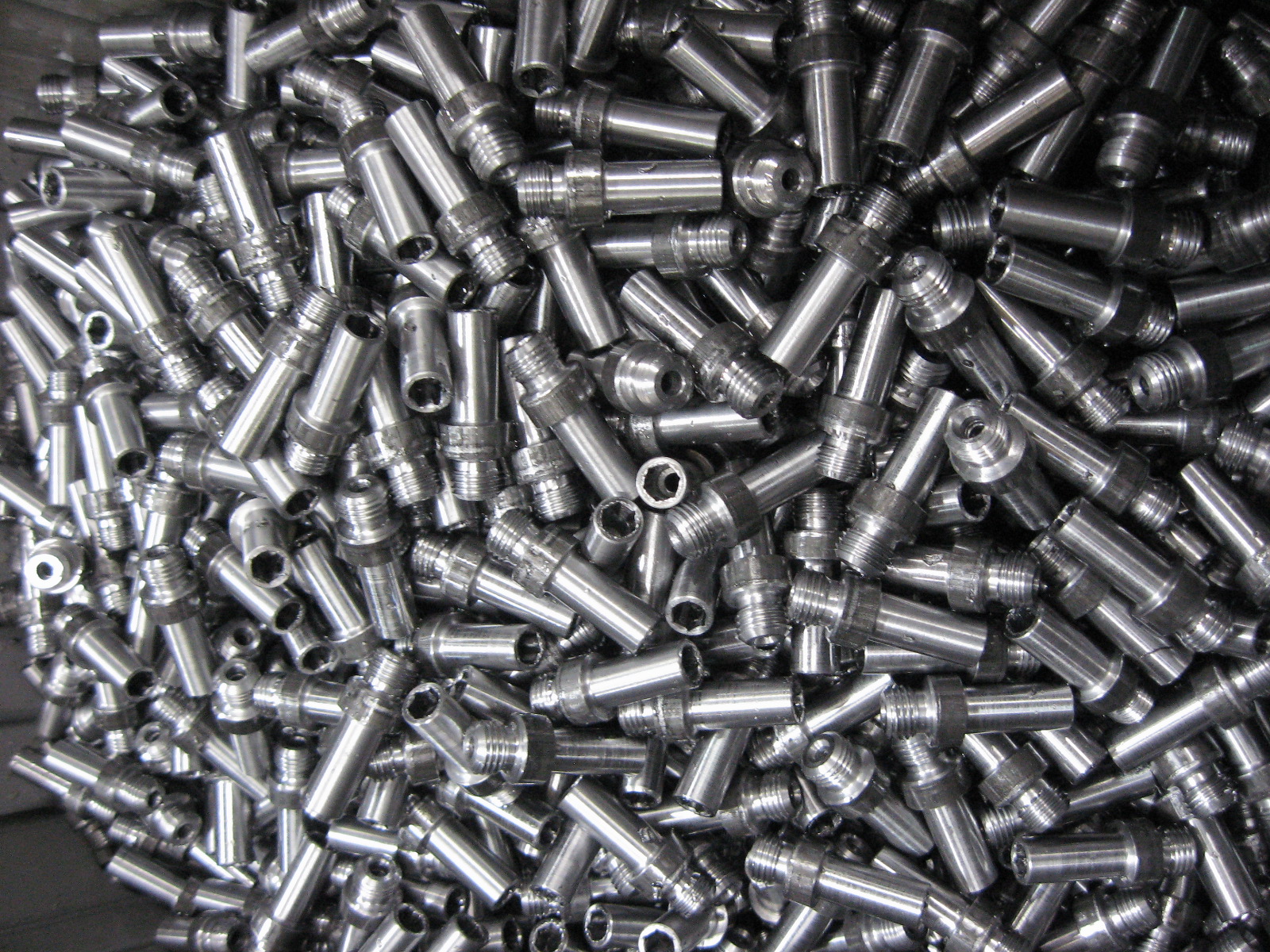

Mega Multiple Operation Fitting


We utilized (5ea) different internal tooling operations !  Internal and External metric threads, multiple counter bores, turned diameters, hexed and beveled. A very complicated small part, held to tight tolerances . . .
by the thousands . . .
End to End
We invite all RFQs . . . and maybe we can help you . . .
Give us a call at (800)833-6417 cst
 Our facility welcomes to become your primary
(or a reliable secondary) source
for all parts requirements - high or low volume.


Stainless Hexed Part


Precision Nut w/Nose.
Internal and externally threaded with through hole (see lower photos)

No quantity is too large - We do multiples.



Grooved Hex / Flat Nut with Recess

I see this unique part in production on the floor today.
Common 3/8-16 thread with a 7/8" hex.
________________________
We invite you to submit prints or ideas for parts and quotations.
Call us at (800)833-6417 cst.


High Volume Parts Runs Today

This part (below) required a "more extensive" program.  Our operator stated, "It was a fun one." The parts look nice Randy !
Lately, we've had some large runs of smalls.  Here's another example of what I saw in the shop today.  Business has been good here at Diversified, and we appreciate all our customers.  We're more than happy to quote you on any jobs, big or small.
Call us at (800)844-6417 cst Mon-Fri 8am-5pm
and we'll get you an answer ASAP.

The headed pins (shown below) are Cnc'd.
However, we have cold heading capability if needed.
Thin, threaded stud nuts by the thousands . . .



Hose Fittings

These fittings are a relatively simple part.  However, we run 1000s of pieces and the first part off the machine is just as important as #1000.  Call us at (800)833-6417 for quotes
or See our website at:



It can't all be about work . . .

I found a mannequin head in our dumpster one day, and had some fun with a few our machinists.  They got me back today . . . I looked in a tool cabinet and my heart rate went up a few beats !

Check These Out . . .

Each part has a "flat" milled on the stub

A slightly complicated part - kicking out multiples.
Call us at (800)833-6417 for quotes, questions anytime.


Threaded Drivers


Turned, Thread OD'd, Threaded, Drilled, Broached & Chamfered

Satisfied Customers = Multiple Reorders

This standard Hex is internally threaded 3/8-16 with counter bore and chamfer.  Multiple operations at high volume is our specialty.  In-house plating facility saves our customers time and money . . . we try our best to increase your profits and eliminate call backs and down time for your job.
More externally threaded inserts . . .
Multiple reorders for these satisfied customers !


Diversified Variety

The last few months we've manufactured a wide variety of parts . . . each requiring multiple operations.  High volume or Low volume - we will complete your order in a timely manner with quality parts.  Call us today for a quotation at (800)833-6417 cst - Iowa


NEW Electroplating Line !

After 2 years of planning and construction . . . our new plating facility is in full production.  A team effort was needed from start to finish.  We now offer high volume, barrel plating operations for standard zinc, zinc & clear, zinc with supplementary yellow-dichromate and passivation (for stainless steel parts).
All parts are washed, rinsed, plated, rinsed, inspected and packaged (all on-site) in our manufacturing facility . . . all on the same city block.  One (or two) day turn-around time is normal on all orders.  Our larger (damage resistant) barrel system can plate 250+ lbs. per batch, saving you time and money per job.
We did our homework on the methods of electroplating . . . and it paid off with brilliant, quality plating for our customers.



Call us with questions, or requests for quotations at (800)833-6417 cst (Iowa).  We'd be more than happy to discuss your plating needs.  Thanks for viewing our blog . . . and see our website at www.dfsusa.com for more detailed company information.

Multi's


Our ace machine operator Randy . . . running multiple parts on a bank of 5 cnc machines today.  Programming operations on our new Zeit(shown).  A couple Emcos spinning steel bars, and a Nexturn dropping these tiny threaded inserts.

Multiple Operations / Fast Turn-Around / Competitive Cost


This high-volume part is cut to length, faced, mill cut, turned, beveled and threaded.  Finished parts off the end of a single machine.  We also offer a "Full Line" In-House Electroplating Facility for customers with a need for zinc & clear . . . or passivation(of stainless steel).  Most plating jobs only add an extra 24hrs to the finished product.

NOTE:
Coming Soon:  A new, user friendly "Contact Us" information LINK on our
CUSTOM MANUFACTURING Website at www.dfsusa.com


New CNC Machinery: via Zeit

Setting up our new Zeit Swiss-style.  This new machine joins our current bank of Swiss - however, it offers you (our customer) larger piece diameters to 42mm (1.625").

Big Parts !



Yes, we can manufactured larger singles, multis . . .
We're here to help.
These new parts required multiple operations - inspected, packaged and shipped.  Freight lines and UPS everyday.
By the box or by the pallet.
Note: Our new plating line is currently doing Clear Zinc, Zinc & Yellow and Stainless Steel Passivation. Manufacturing and Plating operations all at the same facility which saves our customer's lead times, freight and handling charges.

Threaded Shafts



I noticed this unique part the other day . . . threaded on each end (with 2 different thread lengths) for each.  No quantity is too big or too small . . . call for information on manufacturing your parts.


Threaded Adapters


High volume threaded parts.
 Just one of our specialties at DFS/USA.

New Machines


It's interesting to see how a 30+ Ton (60,000+ lbs.) machine arrives.  Gift Wrapped.  Our old machine is then "gift wrapped" for the new owner.  That's a lot of American Iron . . . as we manufacture our "American-Made" parts.  Made in USA is Here To Stay

CNC Mill Cutter Operations


This piece has been designed with multiple, equal distance, mill cutter operations around the OD.  Internally threaded, faced - (and after a deburring operation) - they are ready for shipment.

Aluminum Tubes . . .

. . . machined from 6061-T6 aluminum tubing.  Each has a slash-cut end with a knurling operation.
